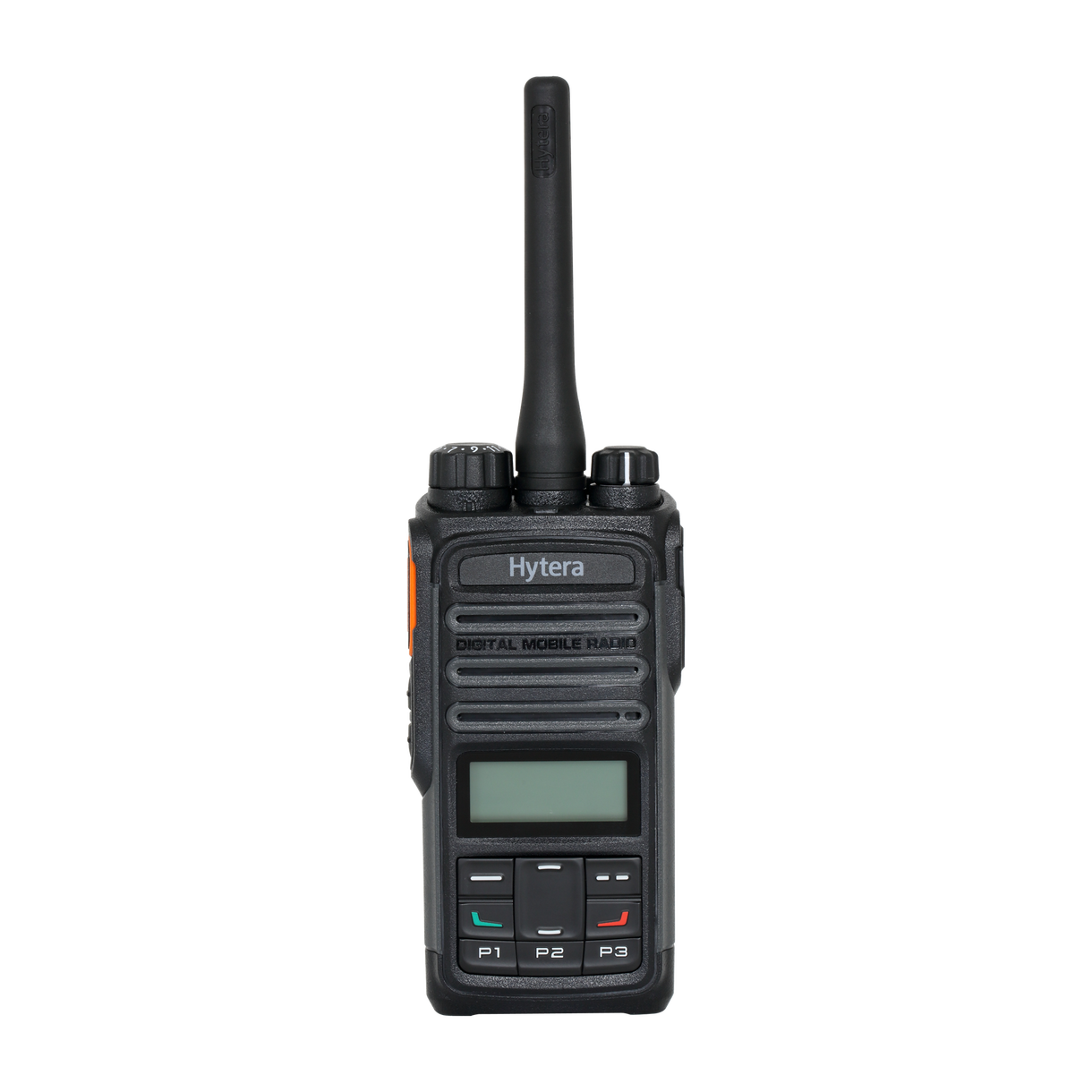

PD462A
CB+ analogue conventional radio
No license for use of all narrowband 80 CB channels including 16 repeater channels. When CB channel mode is enabled, it still allows 176 channels to be programmed. When CB channel mode disabled, it supports 256 programmable channels.
PD462A is capable of ensuring you superior voice in noisy environments or at the edge of the coverage area.
Owner's Manual:
Highlights
80-channel CB
As the FreeTalk® 477 logo indicates, this radio requires no license for use of all narrowband 80 CB channels including 16 repeater channels.
Commercial Channel Mode Ready
Hytera's PD462A is more than just a CB capable radio. There are in total 256 channels. When CB channel mode is enabled, it still allows 176 channels (450-520 MHz) to be programmed. When CB channel mode disabled, it supports 256 programmable channels (450-520 MHz).
CTCSS/CDCSS Stand-by
Users can manually enable, disable or modify the CTCSS/CDCSS function via the radio menu. It is a welcome feature when there is a lot of radio traffic. Where more than one user group are on the same channel, CTCSS filters out other users if they are using a different CTCSS tone or no CTCSS. This allows you to set up the radio so you only hear calls from your own group – everything else is ignored.
Scan
PD462A supports not only scanning in programmed list, but also functions below: 1. Via programmed buttons, users can enable or disable this scan feature. 2. From the displayed menu, users can also add or delete the channels in the scan list. So the noisy channel can be temporarily removed.
Talk around
When working under a repeater, this function allows radio to communicate when the repeater is out of range or the repeater is down. Via the programmable button or the radio menu, the radio can use a receiving frequency to transmit. This allows the radio using simplex transmission and the radio in repeater mode to receive signal from the Talk Around operated radio.
Functions
VOX
The VOX (Voice-operated Transmit) feature allows you to trigger the voice transmission by voice directly rather than pressing PTT button. This brings more convenience to you in the use of your radio.
Rugged & Reliable
It is compliant with MIL-STD-810 C/D/E/F/G standards & IP54.
One Touch Call/Text
Support One Touch features that comprise of Voice Calls and Preprogrammed Text Messages.
Accessories for PD462A
Included as standard with PD462A
Audio
Antenna
Charger & Power
Battery
Carrying
Programming
Systems that work with PD462A
Technical Specifications
General
- Frequency Range
- UHF: 450-520MHz
- Channel Capacity
- 256
- Channel Spacing
- 25/12.5KHz
- Operating Voltage
- 7.4V
- Battery
- 1500mAh (Li-Ion) 2000mAh (Li-Ion)
- Battery Life (5/5/90 )
- Analog/Digital: 12/16 hours (1500mAh) 16/22 hours (2000mAh)
- Weight
- 280g
- Dimensions
- 112×54×30mm
- Frequency Stability
- ±0.5ppm
- Antenna Impedance
- 50Ω
Environmental Specifications
- Dustproof & Waterproof
- IP54 Standard
Features
- RRS
- NO
- GPS
- NO
- Telemetry
- NO
- Option Board
- NO
- Intrinsically Safe Option
- NO
- Bluetooth Audio
- NO
- Radio Check
- NO
- Alert Call
- NO
- Stun / Unstun
- NO
- Remote Monitor
- NO
- Priority Interrupt
- NO
- IP Site Connect
- NO
- Roaming
- NO
- 5 Tone Signalling
- NO
- 2 Tone Signalling
- NO
- HDC 1200 Signalling
- NO
- VOX
- YES
- Priority Scan
- YES
- Intelligent Audio
- YES
- GPS SMS
- NO
- Vibration
- NO
- Emergency Mode
- NO
- Lone Worker
- NO
- Mandown
- NO
- Scrambler (Analogue)
- NO
- Digital Encryption
- NO
- Pesudo Trunking in DMO and RMO
- NO
- Multiple Key Encryption Decode
- NO
- Multi-language Menu
- NO
- Pseudo Trunking in DMO and RMO
- NO
- Power on & off user logo programming
- NO
- Voice Interrupt
- NO
- No of Contacts (Conventional)
- NO
- Text Messaging
- NO
- MPT1327 / 1343 Trunking
- NO
- Tier 3 Trunking
- NO
- XPT
- NO
- Wireless Charging
- NO
- RFID Reader
- NO
- Mixed Mode Operation
- NO
- Data Services via Bluetooth
- N/A
